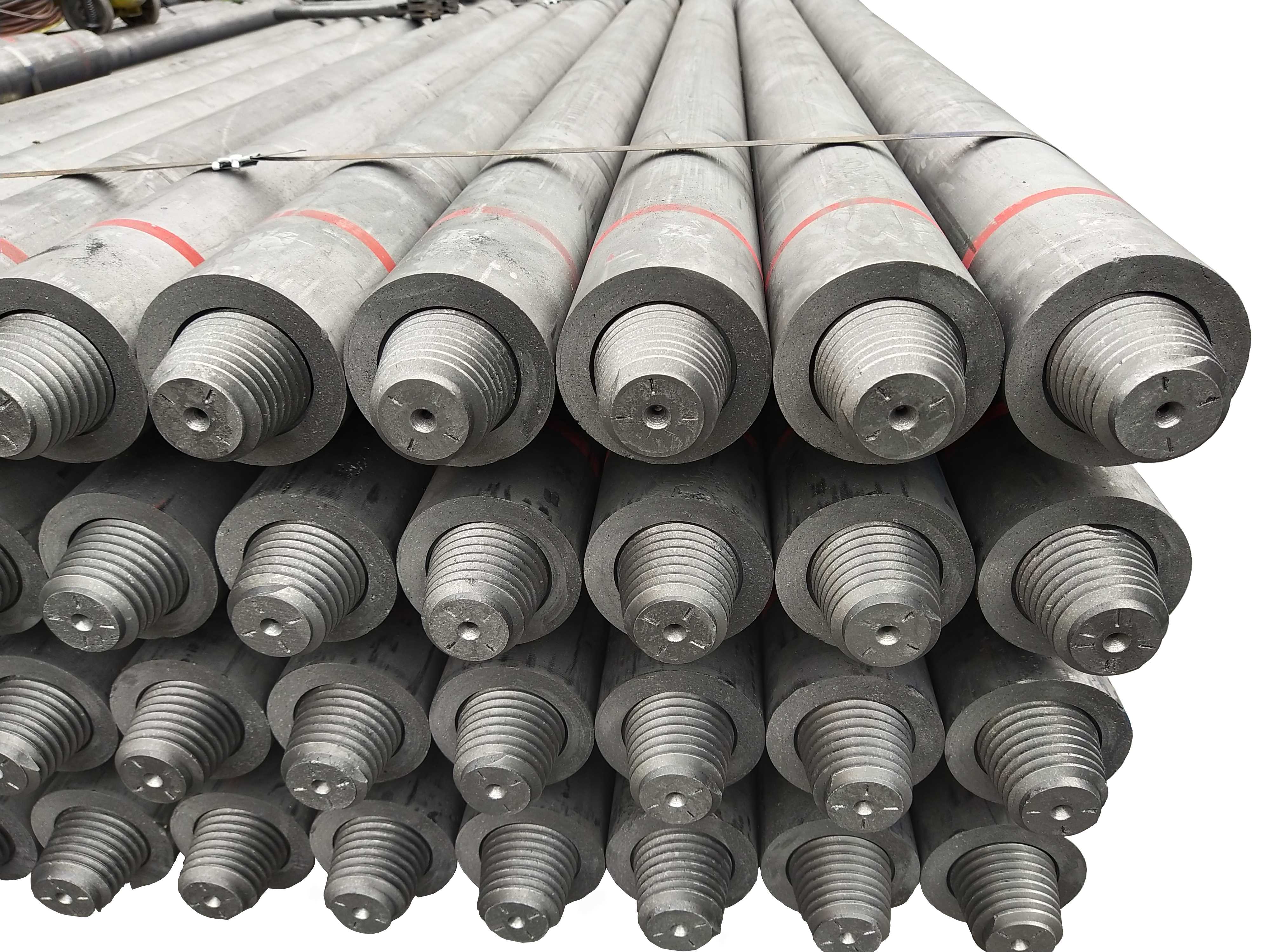

RP100MM GRAPHITE ELECTRODE
Ruixiang New Materials Carbon Co., Ltd. produces ordinary power small diameter graphite electrode, this product is a diameter of 100mm graphite electrode, configuration joint, ordinary power, product size length diameter can be customized according to customer requirements.
This graphite electrode with a diameter of 100 also has high temperature resistance, low thermal expansion, corrosion resistance and good electrical conductivity.
|
Comparison Technical Specification for RP Graphite Electrode 4" |
||
|
|
|
|
|
Electrode |
||
|
Item |
Unit |
Supplier Spec |
|
Typical Characteristics of Pole |
||
|
Nominal Diameter |
mm |
100 |
|
Max Diameter |
mm |
102 |
|
Min Diameter |
mm |
104 |
|
Nominal Length |
mm |
1800/2700 |
|
Max Length |
mm |
1900/2800 |
|
Min Length |
mm |
1700/2600 |
|
Bulk Density |
g/cm3 |
1.60-1.64 |
|
transverse strength |
MPa |
≥ 10.0 |
|
Elastic Modulus |
GPa |
≤ 9.3 |
|
Specific Resistance |
µΩm |
7.5-8.5 |
|
Maximum current density |
KA/cm2 |
16-25 |
|
Current Carrying Capacity |
A |
3000-4500 |
|
(C.T.E) |
10-6°C |
≤ 2.4 |
|
ash content |
% |
≤ 0.3 |
|
|
|
|
|
Typical Characteristics of Nipple |
||
|
Bulk Density |
g/cm3 |
≥ 1.74 |
|
transverse strength |
MPa |
≥ 16.0 |
|
Young' Modulus |
GPa |
≤ 13.0 |
|
Specific Resistance |
µΩm |
5.8-6.5 |
|
(C.T.E) |
10-6°C |
≤ 2.0 |
|
ash content |
% |
≤ 0.3 |
