UHP650 GRAPHITE ELECTRODE

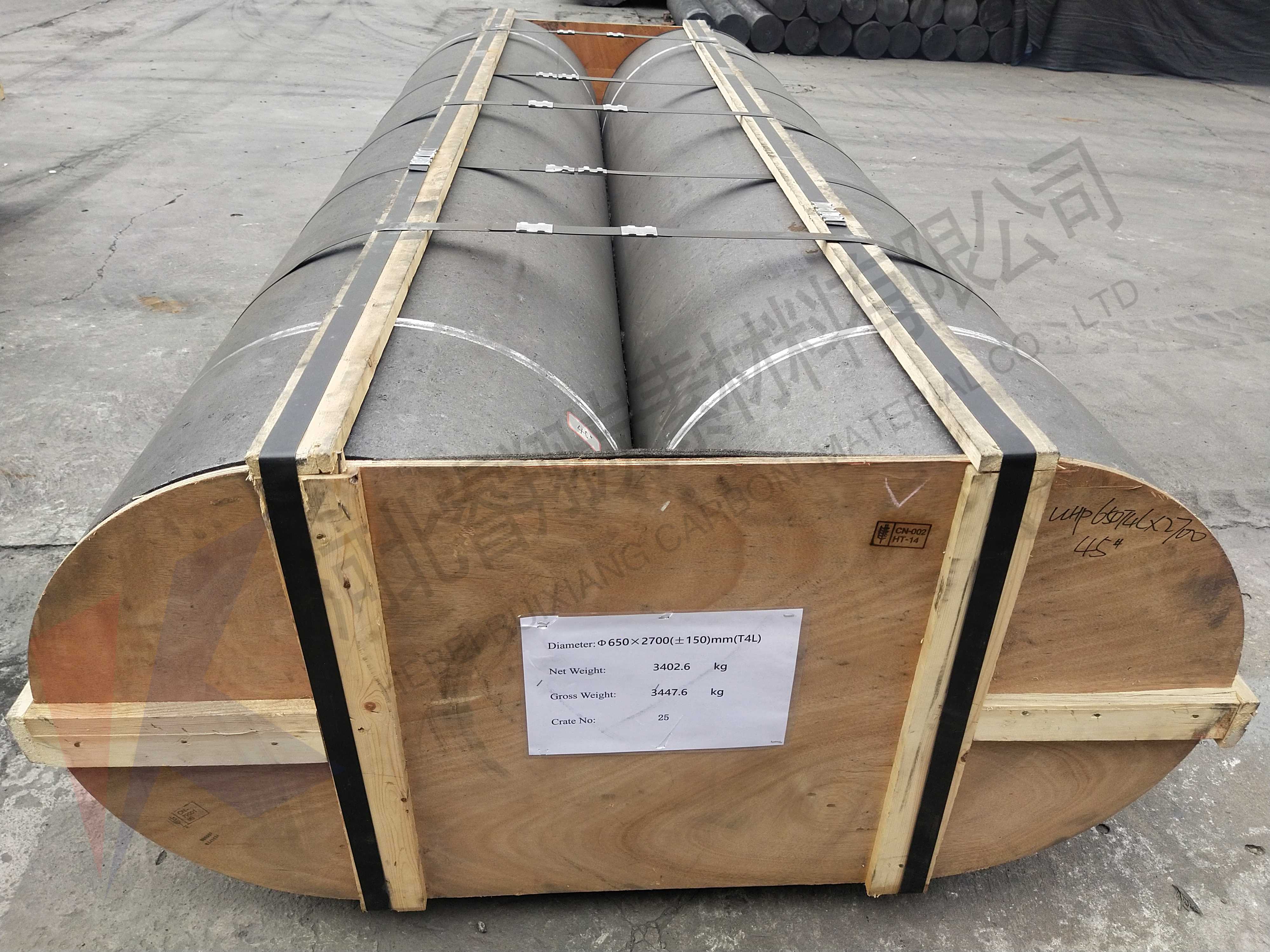

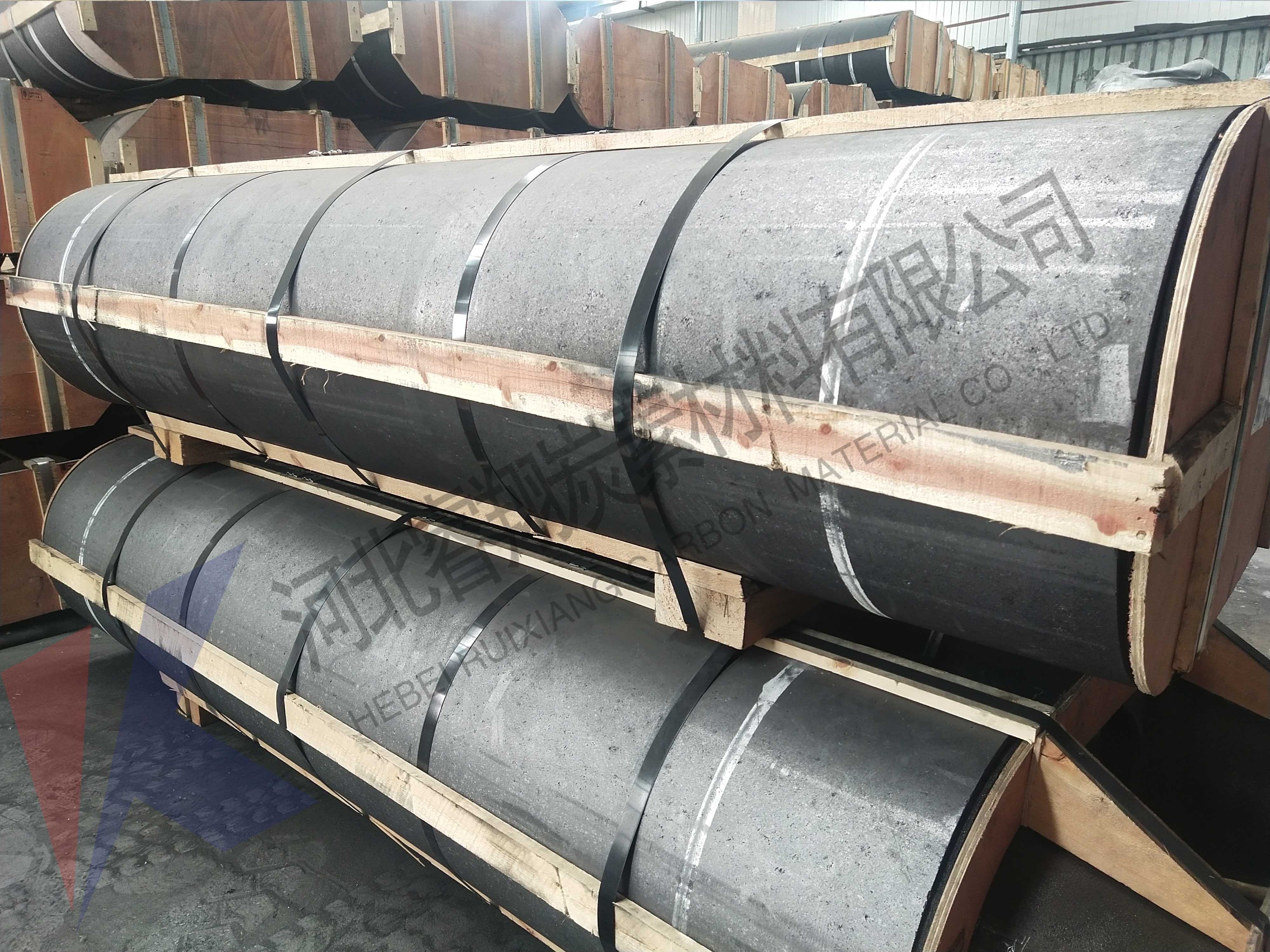

The weight of the UHP650*2700mm graphite electrode attached to the nipple is about 1688kg. 40HQ containers are used for maritime transport. Each container can hold a maximum of 16 UHP650*2700mm graphite electrodes. ruixiang UHP650 graphite electrode is a kind of high-end graphite electrode, which is mainly used in the production of furnaces and electric arc furnaces in the steel and metal processing industries. Compared with other graphite electrodes, UHP650 has higher conductivity, lower resistivity and higher wear resistance. In addition, the UHP650 graphite electrode also has good oxidation resistance and high temperature stability, and can operate stably in a high temperature environment. In summary, the UHP650 graphite electrode is a high-quality, high-performance electrode suitable for the production of high-quality steel and metal products.
| Comparison Technical Specification for UHP Graphite Electrode 26" | ||
| Electrode | ||
| Item | Unit | Ruixiang Spec |
| Typical Characteristics of Pole | ||
| Nominal Diameter | mm | 650 |
| Max Diameter | mm | 663 |
| Min Diameter | mm | 659 |
| Nominal Length | mm | 2200-2700 |
| Max Length | mm | 2300-2800 |
| Min Length | mm | 2100-2600 |
| Bulk Density | g/cm3 | 1.68-1.72 |
| transverse strength | MPa | ≥ 10.0 |
| Young' Modulus | GPa | ≤ 13.0 |
| Specific Resistance | µΩm | 4.5-5.4 |
| Maximum current density | KA/cm2 | 21-25 |
| Current Carrying Capacity | A | 70000-86000 |
| (C.T.E) | 10-6°C | ≤ 1.2 |
| ash content | % | ≤ 0.2 |
| Typical Characteristics of Nipple (4TPI) | ||
| Bulk Density | g/cm3 | 1.80-1.86 |
| transverse strength | MPa | ≥ 24.0 |
| Young' Modulus | GPa | ≤ 20.0 |
| Specific Resistance | µΩm | 3.0~3.6 |
| (C.T.E) | 10-6°C | ≤ 1.0 |
| ash content | % | ≤ 0.2 |
