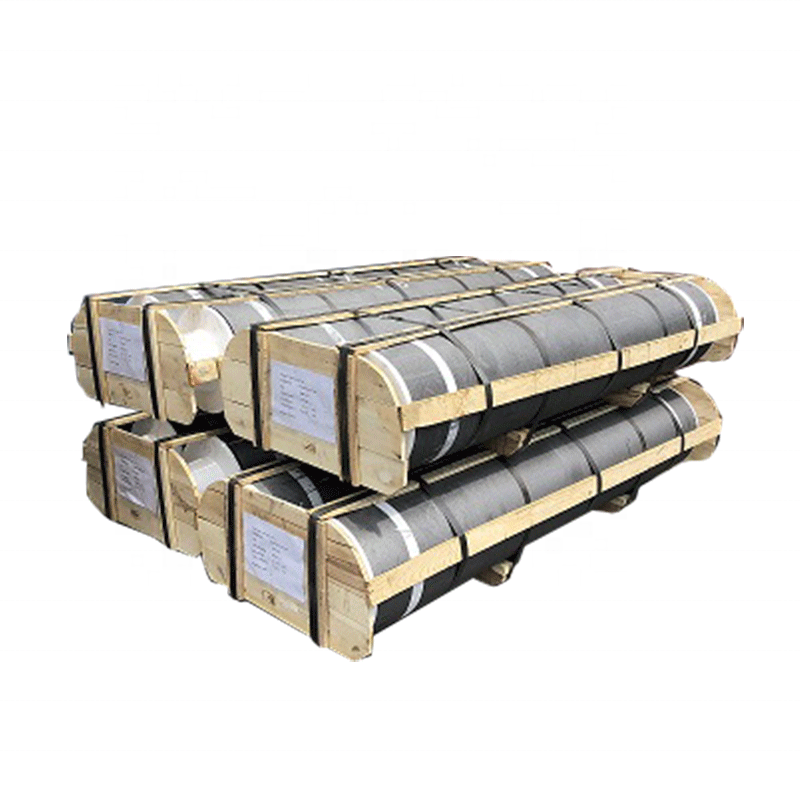

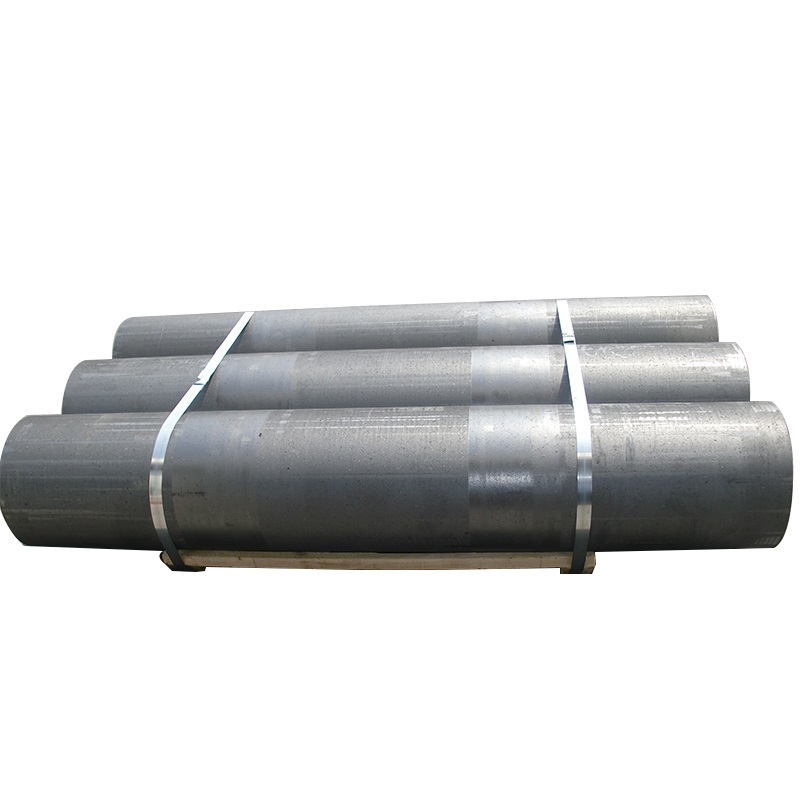

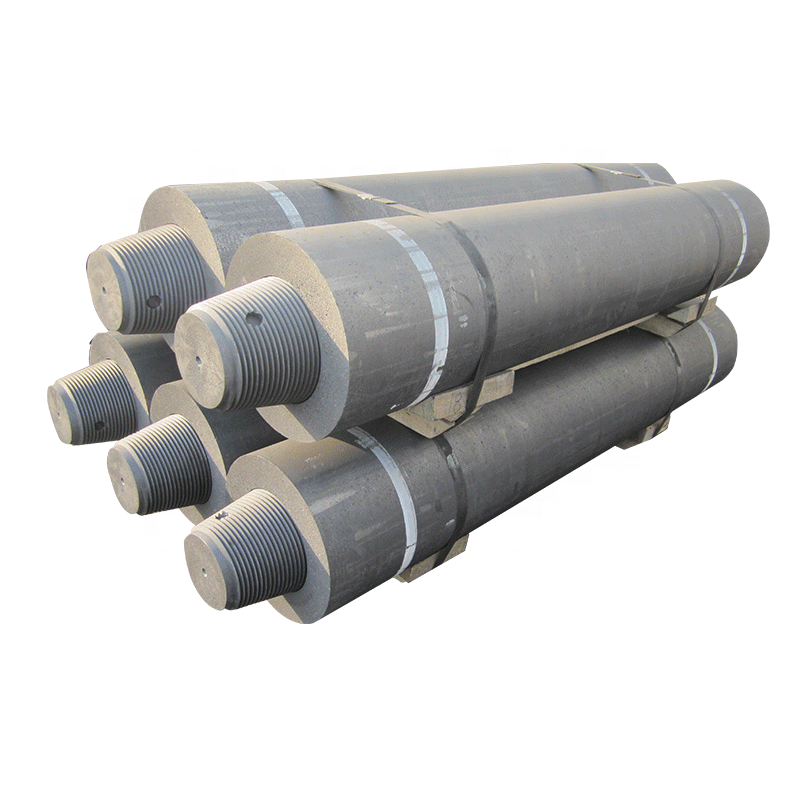

350UHP GRAPHITE ELECTRODE
Ultra-high-power graphite electrode(UHP) is processed by pressing, roasting, impregnating and graphitizing processes with high-quality petroleum coke, asphalt, and imported needle coke. It has high flexural strength, good seismic performance, and small consumption. It is widely used in electric arc furnaces of steel company, and silicon company and so on.
Ultra-high-power graphite electrode(UHP) is processed by pressing, roasting, impregnating and graphitizing processes with high-quality petroleum coke, asphalt, and imported needle coke. It has high flexural strength, good seismic performance, and small consumption. It is widely used in electric arc furnaces of steel company, and silicon company and so on.
| Comparison Technical Specification for UHP Graphite Electrode 14" | ||
| Electrode | ||
| Item | Unit | Supplier Spec |
| Typical Characteristics of Pole | ||
| Nominal Diameter | mm | 350 |
| Max Diameter | mm | 358 |
| Min Diameter | mm | 352 |
| Nominal Length | mm | 1600/1800 |
| Max Length | mm | 1700/1900 |
| Min Length | mm | 1500/1700 |
| Bulk Density | g/cm3 | 1.68-1.73 |
| transverse strength | MPa | ≥ 12.0 |
| Young' Modulus | GPa | ≤ 13.0 |
| Specific Resistance | µΩm | 4.8-5.8 |
| Maximum current density | KA/cm3 | 20-30 |
| Current Carrying Capacity | A | 20000-30000 |
| (C.T.E) | 10-6°C | ≤ 1.2 |
| ash content | % | ≤ 0.2 |
| Typical Characteristics of Nipple (4TPI) | ||
| Bulk Density | g/cm3 | 1.78-1.84 |
| transverse strength | MPa | ≥ 22.0 |
| Young' Modulus | GPa | ≤ 18.0 |
| Specific Resistance | µΩm | 3.4~4.0 |
| (C.T.E) | 10-6°C | ≤ 1.0 |
| ash content | % | ≤ 0.2 |
